Leading EN 1092-1 PN 400 Flange Manufacturer, PN 400 Flanges Supplier & PN 400 Flanges Exporter (40.0 MPa) in Mumbai, India

Dipti Metal Industries is a Leading global EN 1092-1 Flange Manufacturer, EN 1092-1 PN 400 Flanges Supplier & EN 1092-1 PN 400 Flanges Exporter of flanges conforming to the European Standard EN 1092-1 in the PN 400 pressure rating (40.0 MPa / ~5800 PSI). PN 400 is an ultra-high-pressure rating, roughly comparable to ASME Class 2500, and is critical for severe applications like high-pressure feedwater and critical process lines. We supply key flange types, including Type 05 Blind, Type 11 Weld Neck, and Type 21 Integral flanges, in a comprehensive size range from DN10 up to DN200. We ensure material traceability and dimensional compliance for seamless integration into European and global piping networks. Our materials are sourced from the EN 10222 forging standard, guaranteeing certified performance.

Request a Quote for EN 1092-1 PN 400 Flanges WhatsApp Sales Flange Types 05, 11 (Weld Neck, Blind) Available Wide Range of Materials: EN 10222-2, 3, 4, 5 Forging Steels

🏭 About Dipti Metal Industries — Your EN 1092-1 PN 400 Partner

Founded in 2009 in Mumbai, India, we are a global EN 1092-1 Flange Manufacturer and PN 400 Flange Exporter specializing in certified ultra-high-pressure flanges for international markets. Our manufacturing process guarantees that our PN 400 flanges adhere strictly to the dimensions, facing, and tolerances specified in the EN 1092-1 standard. We focus on efficiently supplying projects requiring these extremely high-pressure flanges, ensuring all forgings are procured and certified to the comprehensive EN 10222 material specification.

📘 Standard Overview: EN 1092-1 PN 400

The EN 1092-1 standard is the primary specification for circular steel flanges for piping in Europe. PN 400 (Nominal Pressure 400 Bar) is an ultra-high-pressure rating, comparable to ASME Class 2500, and is strictly limited to small bore sizes (DN10 to DN200). This rating is essential for sectors like power generation (supercritical steam), petrochemical processing, and extreme-high-pressure hydraulic applications where the highest level of component integrity is required.

completo EN 10222 Forging Steel Grades List Supplied

This comprehensive list details the various EN 10222 grades we supply and manufacture into PN 400 Flanges and other pressure components. All are sourced with certified EN 10204 3.1 documents.

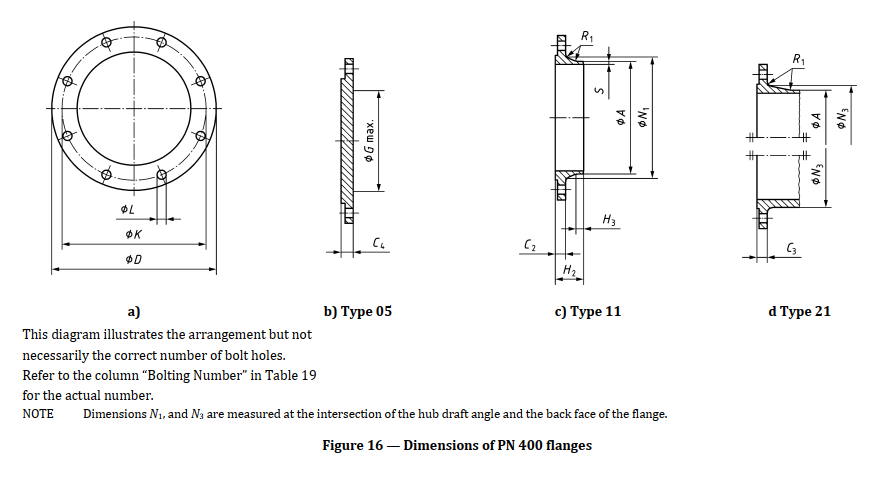

EN 1092-1 PN 400 Flange Mating Dimensions (DN10 - DN200)

The following table outlines the essential mating dimensions (in mm) for EN 1092-1 PN 400 Flanges, including the Outside Diameter (D), Bolt Circle Diameter (K), and Bolting details, critical for interchangeable assembly of Type 05, 11, and 21 flanges.

UNIT: mm. Data extracted from EN 1092-1 Table 21, focusing on the PN 400 Mating Dimensions (D, K, L, N, Size).
Dimensions apply across all applicable flange types (05, 11, 21) for PN 400.

EN 1092-1 PN 400 Flange Types & Product Range Supplied

We manufacture the primary flange types mandated by EN 1092-1 in the PN 400 pressure class, utilizing certified EN 10222 forging grades to ensure full interoperability for ultra-high-pressure European systems.

Key Applications for EN 1092-1 PN 400 Flanges

The PN 400 class is used exclusively for the most critical ultra-high-pressure industrial and power generation applications where maximum reliability is paramount.

• Power Generation: Supercritical steam headers, high-pressure feedwater lines, and boiler components (comparable to ASME Class 2500).
• Petrochemical Processing: High-pressure polymerization reactors, methanol synthesis units, and critical catalyst recovery lines.
• Oil & Gas (Downstream): Ultra-high-pressure injection and process lines where extreme pressures are encountered.
• Industrial Utilities: Ultra-high-pressure hydraulic systems and specialized compressed gas storage/distribution.
• Heavy Machinery: Flanged connections on high-capacity reciprocating pumps and compressors.

Global Distribution Network for EN 1092-1 PN 400 Flanges

As a global EN 1092-1 Flange Exporter and Supplier, Dipti Metal Industries efficiently services European and international projects requiring large volumes of PN 400 flanges for demanding industrial installations.

Major Markets Served by Our EN 1092-1 Exporter Network

Why Procure Your EN 1092-1 PN 400 Flanges from Dipti Metal Industries?

• EN Standard Compliance: Guaranteed dimensional compliance with EN 1092-1:2018 for seamless integration into European piping systems.
• PN 400 Stock Range: Ready inventory of all required types (05, 11, 21) within the PN 400 rating, from DN10 up to DN200.
• ASME Equivalent: Flanges functionally comparable to ASME Class 2500, offering versatility for critical ultra-high-pressure projects.
• Material Versatility: Direct sourcing and full traceability on EN 10222 forging grades, ensuring the correct material properties (Creep, Low-Temp, Stainless) for the PN 400 application.

Request a Custom Quote for EN 1092-1 PN 400 Flanges

Contact Dipti Metal Industries today for certified EN 1092-1 PN 400 Flanges of all types (05, 11, 21, etc.). Provide your required Flange Type, Nominal Size (DN), and Material (e.g., P250GH or 1.4404) for a competitive, customized quote and expert technical support.
