Leading EN 1092-1 PN 40 Flange Manufacturer, PN 40 Flanges Supplier & PN 40 Flanges Exporter (4.0 MPa) in Mumbai, India

Dipti Metal Industries is a Leading global EN 1092-1 Flange Manufacturer, EN 1092-1 PN 40 Flanges Supplier & EN 1092-1 PN 40 Flanges Exporter of high-pressure flanges conforming to the European Standard EN 1092-1 in the PN 40 pressure rating (4.0 MPa / ~580 PSI). PN 40 is a widely specified high-pressure class, directly comparable to ASME Class 300 and is critical for process, power, and high-pressure utility lines. We supply all compatible flange types (Type 01 Plate, Type 05 Blind, Type 11 Weld Neck, etc.) in a size range from DN10 up to DN600 (with larger sizes available up to DN1000 for mating dimensions). We ensure material traceability and dimensional compliance for seamless integration into European and global piping networks. Our materials are sourced from the EN 10222 forging standard, guaranteeing certified performance.

Request a Quote for EN 1092-1 PN 40 Flanges WhatsApp Sales Flange Types 01, 05, 11 (Weld Neck, Blind, Plate) Available Wide Range of Materials: EN 10222-2, 3, 4, 5 Forging Steels

🏭 About Dipti Metal Industries — Your EN 1092-1 PN 40 Partner

Founded in 2009 in Mumbai, India, we are a global EN 1092-1 Flange Manufacturer and PN 40 Flange Exporter specializing in certified high-pressure flanges for international markets. Our manufacturing process guarantees that our PN 40 flanges adhere strictly to the dimensions, facing, and tolerances specified in the EN 1092-1 standard. We focus on efficiently supplying projects requiring large quantities of PN 40 flanges, covering the full DN range and ensuring all forgings are procured and certified to the comprehensive EN 10222 material specification.

📘 Standard Overview: EN 1092-1 PN 40

The EN 1092-1 standard is the primary specification for circular steel flanges for piping in Europe. PN 40 (Nominal Pressure 40 Bar) is a robust, high-pressure rating, comparable to ASME Class 300, widely used across demanding sectors such as oil & gas, power generation (steam lines), and high-pressure chemical processes. The standard specifies dimensions, bolt configuration, and material requirements to ensure durability and performance reliability across demanding European piping systems.

completo EN 10222 Forging Steel Grades List Supplied

This comprehensive list details the various EN 10222 grades we supply and manufacture into PN 40 Flanges and other pressure components. All are sourced with certified EN 10204 3.1 documents.

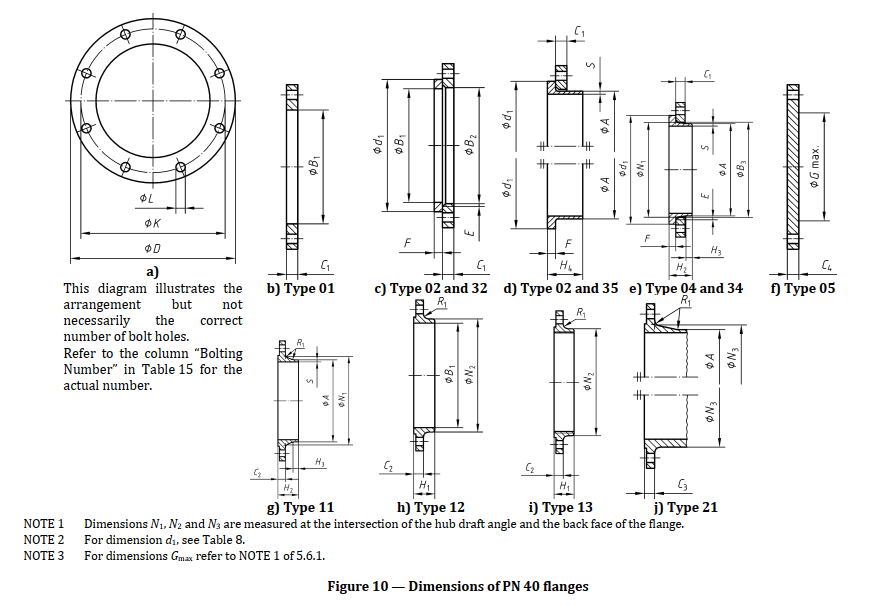

EN 1092-1 PN 40 Flange Mating Dimensions (DN10 - DN1000)

The following table outlines the essential mating dimensions (in mm) for EN 1092-1 PN 40 Flanges, including the Outside Diameter (D), Bolt Circle Diameter (K), and Bolting details, critical for interchangeable assembly of Type 01, 05, 11, and other applicable types.

UNIT: mm. Data extracted from EN 1092-1 Table 13, focusing on the PN 40 Mating Dimensions (D, K, L, N, Size).
Dimensions apply across all applicable flange types for PN 40.

EN 1092-1 PN 40 Flange Types & Product Range Supplied

We manufacture all the primary flange types mandated by EN 1092-1 in the PN 40 pressure class, utilizing certified EN 10222 forging grades to ensure full interoperability for high-pressure European systems.

Key Applications for EN 1092-1 PN 40 Flanges

The PN 40 class is essential for high-pressure industrial and process applications, often serving as the primary flange rating in modern plant construction.

• Oil & Gas Processing: High-pressure separators, manifolds, and process pipelines (comparable to ASME Class 300).
• Power Generation: Medium-to-high pressure steam, condensate, and auxiliary lines.
• Chemical & Petrochemical: Critical process lines requiring robust flange connections due to pressure and temperature.
• Industrial Hydraulics: Flanged connections on heavy machinery and hydraulic power units.
• Pump and Compressor Stations: Connections on high-capacity rotating equipment.

Global Distribution Network for EN 1092-1 PN 40 Flanges

As a global EN 1092-1 Flange Exporter and Supplier, Dipti Metal Industries efficiently services European and international projects requiring large volumes of PN 40 flanges for demanding industrial installations.

Major Markets Served by Our EN 1092-1 Exporter Network

Why Procure Your EN 1092-1 PN 40 Flanges from Dipti Metal Industries?

• EN Standard Compliance: Guaranteed dimensional compliance with EN 1092-1:2018 for seamless integration into European piping systems.
• PN 40 Stock Range: Ready inventory of all required types (01, 05, 11) within the PN 40 rating, from DN10 up to DN1000.
• ASME Equivalent: Flanges functionally comparable to ASME Class 300, offering versatility for international projects.
• Material Versatility: Direct sourcing and full traceability on EN 10222 forging grades, ensuring the correct material properties (Creep, Low-Temp, Stainless) for the PN 40 application.

Request a Custom Quote for EN 1092-1 PN 40 Flanges

Contact Dipti Metal Industries today for certified EN 1092-1 PN 40 Flanges of all types (01, 05, 11, etc.). Provide your required Flange Type, Nominal Size (DN), and Material (e.g., P250GH or 1.4404) for a competitive, customized quote and expert technical support.
